Endoscopy is a minimally invasive procedure that allows doctors to examine the inside of the body without major surgery. Behind every successful endoscopic exam is a set of specialized instruments designed for visualization, sampling, and treatment.
This guide breaks down the key endoscopy instruments and their roles in modern medicine.

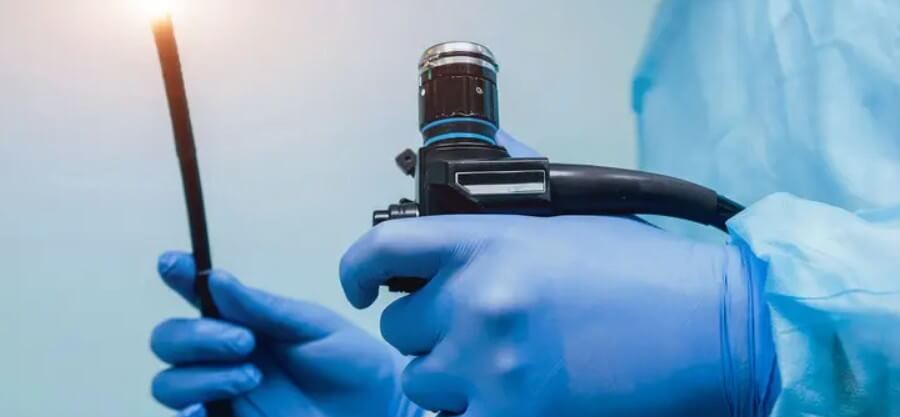

1. Endoscope
The endoscope is the core instrument in any endoscopic procedure. It is a thin, flexible (or sometimes rigid) tube fitted with a tiny camera and light source at its tip. The endoscope is inserted into the body through a natural opening or small incision, transmitting real-time images to a monitor. Modern endoscopes use high-definition cameras and fiber-optic technology to give physicians a clear, magnified view of internal organs, the digestive tract, airways, or joints.
2. Light Source
Every endoscope depends on a dedicated light source unit to illuminate the internal cavity being examined. Since natural body cavities have no ambient light, a bright, adjustable light source—often LED or xenon-based—is connected via fiber-optic cables to the endoscope tip. This ensures clear visibility for accurate diagnosis.
3. Video Processor and Monitor
The video processor converts the optical signal from the endoscope's camera into a digital image displayed on a monitor. This system allows the entire medical team to view the procedure in real time, supports image and video recording for patient records, and often includes enhancement features like narrow-band imaging to highlight tissue abnormalities.
4. Biopsy Forceps
Biopsy forceps are small, pincer-like instruments passed through a working channel in the endoscope. They allow doctors to grasp and remove tiny tissue samples for laboratory analysis. This is essential for diagnosing conditions such as ulcers, infections, or cancer, since visual inspection alone cannot confirm a diagnosis.
5. Insufflator
An insufflator pumps controlled amounts of air or carbon dioxide into a body cavity, such as the stomach or colon, to expand it. This creates space for the endoscope to move freely and gives a clearer view of the tissue walls, making it a critical support tool during gastrointestinal endoscopy.
6. Snare
A snare is a wire loop instrument used to remove polyps or abnormal growths during endoscopy. The loop is placed around the base of the polyp and tightened, then an electrical current is often applied to cut and cauterize the tissue simultaneously, minimizing bleeding.
7. Injection Needle
Endoscopic injection needles are used to deliver medications directly to a targeted site, such as injecting epinephrine to control bleeding ulcers or saline to lift tissue before removal. These needles retract into a protective sheath when not in use, ensuring safe passage through the endoscope's working channel.
8. Guidewire
A guidewire is a thin, flexible wire used to navigate through narrow or winding passages, such as bile ducts during an ERCP (endoscopic retrograde cholangiopancreatography). It acts as a track along which other instruments, like catheters or stents, can be safely guided to the target location.
9. Cannula and Catheters
Cannulas and catheters are hollow tubes used for accessing ducts, injecting contrast dye, or delivering treatment. In procedures like ERCP, a cannula is inserted into the bile or pancreatic duct to allow imaging or drainage.
10. Dilators and Balloon Catheters
When a passage such as the esophagus or a duct becomes narrowed by scarring or disease, dilators or balloon catheters are used to gently widen it. Balloon dilators are inflated at the narrowed site to stretch the tissue, restoring normal function without surgery.
11. Cytology Brush
A cytology brush is a small bristled instrument used to collect cell samples from the lining of an organ, particularly useful for diagnosing conditions in the bile ducts or esophagus where solid tissue biopsy may be difficult.
12. Hemostatic Clips
Hemostatic clips are small metal clips deployed through the endoscope to stop bleeding or close small perforations. They work like tiny staples, pinching tissue together to seal a bleeding vessel or wound without requiring open surgery.
13. Retrieval Basket and Net
Retrieval baskets and nets are used to capture and remove foreign objects, stones, or tissue samples from within the body. They are commonly used to extract gallstones or bile duct stones during ERCP procedures.
14. Band Ligator
A band ligator is used primarily to treat esophageal varices—enlarged veins that can bleed dangerously. The device places small rubber bands around the base of the varix, cutting off blood flow and causing it to shrink over time.
15. Cleaning and Disinfection Equipment
Because endoscopes are reused across patients, thorough cleaning and high-level disinfection equipment is essential. Automated reprocessors clean the internal channels of endoscopes to eliminate contamination risk, following strict infection control protocols.
Conclusion
Endoscopy relies on a sophisticated toolkit, from the endoscope itself to specialized instruments like biopsy forceps, snares, and hemostatic clips. Together, these tools allow doctors to diagnose and treat conditions with precision while minimizing patient discomfort and recovery time. Understanding these instruments helps patients appreciate the technology behind this valuable diagnostic and therapeutic procedure.
